TEE Planes

In this chapter we will review the 11 views and the planes they represent in a 3D model of the heart for your reference. Explore the companion TEE views with pathology in this link.

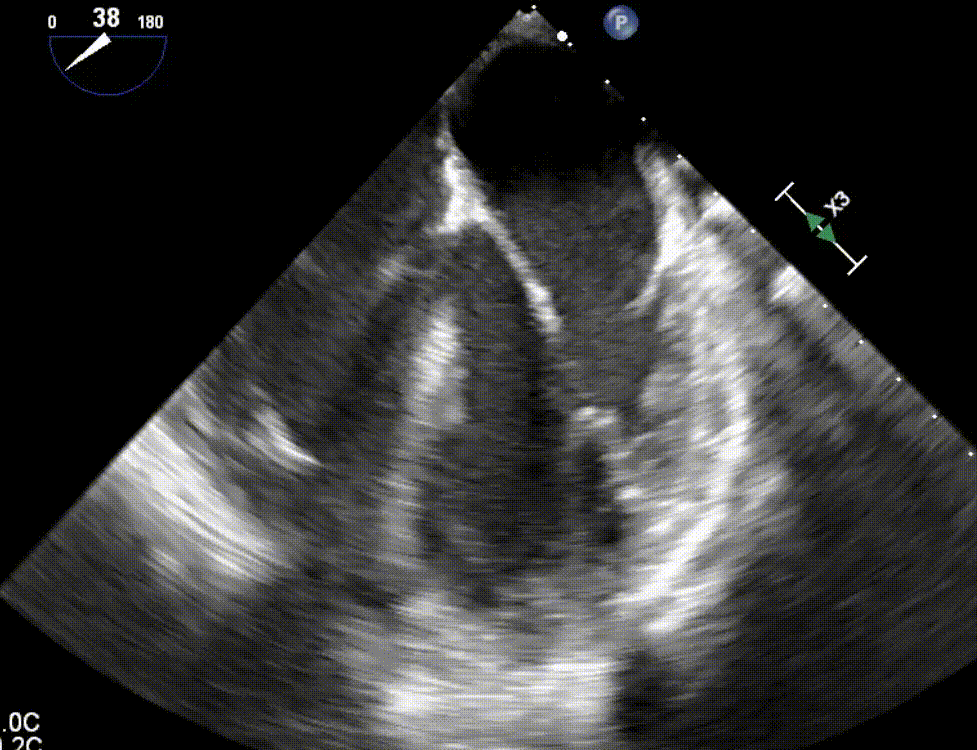

Mid Esophageal 4 Chamber View

RA                      LA

TV              AMVL       PMVL

         IS                            AL



RV                       LV

Here we visualize: Left Atrium (LA), Right Atrium (RA), Left Ventricle (LV) [inferoseptal (IS) + anterolateral (AL) walls], Right Ventricle (RV), Mitral Valve [anterior(AMVL), posterior (PMVL) leaflets], Tricuspid Valve [Septal (STVL), Anterior (ATVL) leaflets]

ME 4c
ME 2c

Mid Esophageal 2 Chamber View

           LA

PMVL       AMVL

Inferior                Anterior

              LV



Here we visualize: Left Atrium (LA), Left Ventricle (LV) [Anterior and Inferior walls], Mitral Valve [anterior(AMVL), posterior (PMVL) leaflets], coronary sinus (CS).

ME Lx

Mid Esophageal Long Axis


                     LA

PMVL            AMVL

                       LVOT           AV

Inferolat

                        Antero sept

              LV

Here we visualize: Left Atrium (LA), Left Ventricle (LV)[anteroseptal and inferolateral walls], Mitral Valve [anterior (AMVL), posterior (PMVL) leaflets], Aortic Valve (AV), Left Ventricular outflow tract (LVOT).

ME Asc Ao Lx

Mid Esophageal Ascending Aorta Long Axis

Here we visualize: Ascending Aorta (Ao ) in Long axis, Right pulmonary artery (RPA) in short axis.


                     RPA





                   Ao





ME Asc short axis

Mid Esophageal Ascending Aorta Short Axis

                     RPA

 SVC





                   Ao

                                                   MPA



Here we visualize: Main Pulmonary Artery (PA), Right Pulmonary Artery (RPA), Ascending Aorta in short axis (Ao) and Superior Vena Cava (SVC).

Trans Gastric

Trans Gastric Mid Pappillary Short Axis

                        Inf

    Inf sept                       Inf lat

   Ant sept                          Ant Lat



                          Ant

Here we visualize: LV [ Mid anterior, mid inferior, mid anteroseptal, mid inferoseptal, mid anterolateral, mid inferolateral walls], anterolateral and posteromedial papillary muscles, Right Ventricle.

TG best01_edited.jpg
RV inflow outflow

Mid Esophageal RV inflow outflow

                                    LA

   IAS

 RA



           TV                                         PV





Here we visualize: Aortic Valve (AV), Tricuspid Valve (anterior/septal and posterior leaflet ), Left Atrium (LA), Right Atrium (RA), Pulmonic Valve (PV), Right ventricular outflow tract (RVOT).

AV Short Axis

Mid Esophageal Aortic Valve Short Axis



                               LCC

             NCC



                                           RCC

Here we visualize: Aortic Valve (AV)[Non coronary cusp NCC, Left coronary cusp LCC and Right coronary cusp, RCC], Tricuspid Valve (anterior/septal and posterior leaflet ), Left Atrium (LA), Right Atrium (RA), Pulmonic Valve (PV), Right ventricular outflow tract (RVOT).

Bicaval view

Mid Esophageal Bicaval

                                  LA

                            IAS

 IVC



                                                 SVC

                                CT


Here we visualize: Left Atrium (LA), Right Atrium (RA), Inferior Vena Cava (IVC), Superior Vena Cava (SVC), Inter-atrial septum (IAS), Crista Terminalis (CT).

Mid Esophageal Descending Aorta Long and Short Axis

 1


 1

 2


 2

Here we can appreciate the short axis of the descending aorta (clip 1) while clip 2 is its long axis appearance. They display high degree of calcification within the lumen.

10 and 11. ME descending w calcifications.gif

 1

 2

ME Descending

References

1. Hahn R and all. Guidelines for Performing a Comprehensive Transesophageal Echocardiographic Examination: Recommendations from the American Society of Echocardiography and the Society of Cardiovascular Anesthesiologists. J Am Soc Echocardiogr 2013;26:921-64
